Dimensions and Ontology
Definition
Dimensions are reusable project-level axes for describing how cases differ. Each Dimension contains ontology values: the named members used to classify cases and measure representation. A Dimension might be Source condition, with values such as Current, Superseded, Conflicting, and Missing.
Use Project Foundations → Coverage Facets → Dimension to create, generate, inspect, and maintain them.
Fields, states, or lifecycle rules
What a Dimension contains
| Element | Purpose |
|---|---|
| Name and description | Explain the behavior axis and its boundary |
| Ontology values | Define the values used for classification |
| Examples | Show classified cases and the reason for a value assignment |
| Statistics | Show case-pool and benchmark distribution by ontology value |
| Benchmark focus | Show whether values are required, sampled, diagnostic, or ignored in benchmark setup |
Dimensions and ontology values are project foundations. A benchmark does not copy them. Get Started assigns benchmark-specific roles to the project values, and Representation reports how the selected cases cover them.

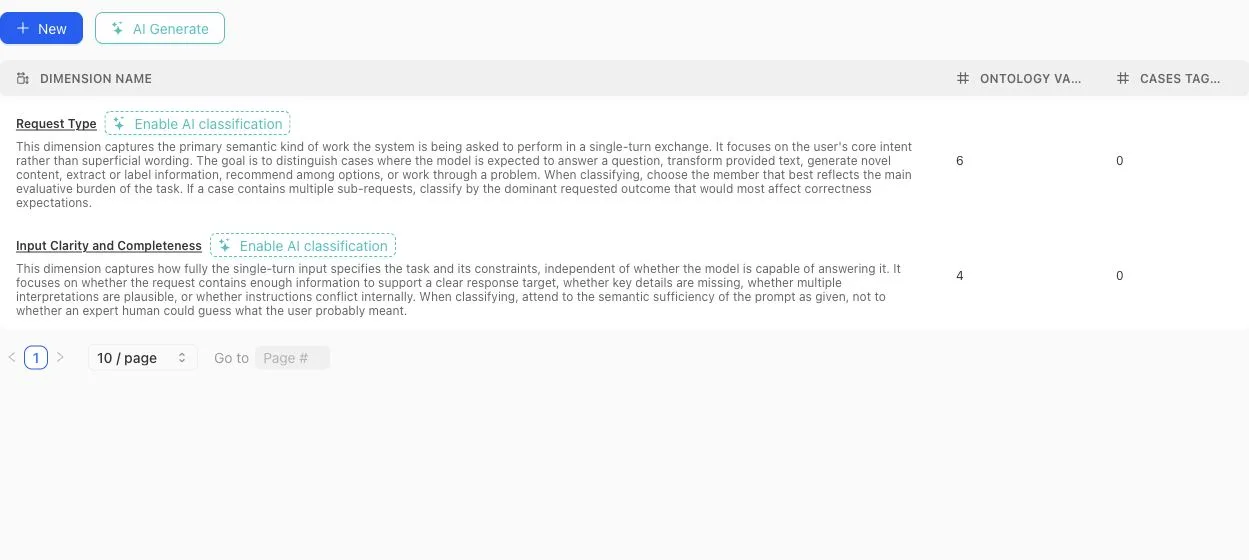

Use the table to compare each Dimension's definition with its ontology and current classification footprint before opening the detail view.
Create or generate a schema
Create a Dimension manually when the axis and vocabulary are already understood. Use the dimension-schema generator when project context or source material should produce a reviewable proposal. Generated proposals can include a definition, why the Dimension matters, proposed ontology members, and warnings.
A proposal is not the active schema. Review each proposed Dimension and value before accepting it. Avoid accepting near-duplicates simply because they use different wording.
Design rules
- Make the Dimension answer one stable question. Split axes that mix several independent concerns.
- Give every ontology value a definition that distinguishes it from neighboring values.
- Prefer values that can be applied consistently to real cases.
- Do not use a Dimension to encode case quality, policy approval, or a desired model score.
- Review distributions after changing values. A clean schema can still leave important cases unclassified.
- Delete only after checking Case Pool and benchmark usage; removal changes the project coverage vocabulary.
Benchmark roles
In benchmark Get Started, each Dimension and ontology value can receive a focus role:
- Required: the benchmark is expected to cover this value.
- Sampled: include it as part of the desired mix.
- Diagnostic: track it for analysis without making it part of the main denominator.
- Ignored: exclude it from the benchmark coverage intention.
- Unset: no explicit benchmark instruction has been recorded.
Those roles shape Coverage Story generation and interpretation. They do not alter the project-level definition of the value.
Worked example
Example: source condition
The project defines a Source condition Dimension with Current, Superseded, Conflicting, and Missing values. One benchmark marks all four as required; another marks Current as required and the remaining values as diagnostic. The same project vocabulary supports different benchmark intentions without duplicating the Dimension.
Related task pages
Source confidence
Code-backed: the current Dimension list, detail, settings, proposal, classification, examples, and statistics surfaces establish these fields and lifecycle boundaries.
